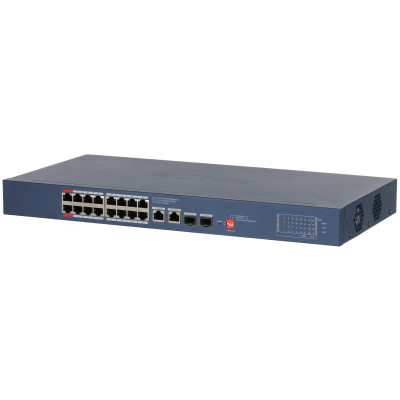

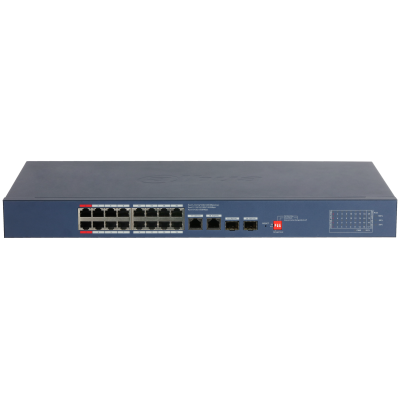

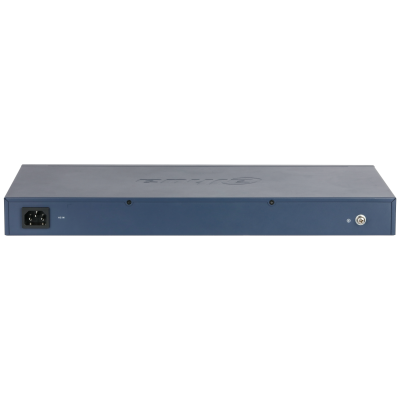

DAHUA 20-PORT CLOUD MANAGED DESKTOP GIGABIT SWITCH WITH 16-PORT POE (CS4220-16GT-190)

DESCRIPTION

Switch with 16 PoE Gigabit ports + 2 Ethernet Gigabit ports + 2 SFP Gigabit ports, 190W, cloud manageable, rackable

• 16 √ó RJ-45 Gigabit PoE ports, 2 √ó RJ-45 Gigabit ports, 2 √ó SFP Gigabit ports

• 190W total PoE budget; 802.3af/at on all PoE ports, additional 802.3bt on Red port

• DIP switch for fast ON/OFF of Cloud-Managed mode, PoE Watchdog, and long-distance PoE

• Wide operating temperature range: ‚Äì10¬∞C to +55¬∞C

• Supports VLAN, STP, RSTP, and link aggregation

• Web-managed and centralized cloud management via DoLynk app with real-time network monitoring

• Easy configuration for auto-detection and network setup

HARDWARE
Included Power Adapter: Yes
PoE: Yes
Ethernet Ports: 18
Optical Ports: 2
Ethernet Port Speed: 10/100/1000 Mbps
Optical Port Speed: 1000 Mbps
Port Description: Ports 1-16: RJ-45 10/100/1000 Mbps (PoE); Ports 17-18: RJ-45 10/100/1000 Mbps; Ports 19-20: SFP 1000 Mbps
Console: 1
Reset Button: 1
Power Supply: 100-240 VAC, 50/60 Hz, 3.5 A
Operating Temperature: –10°C to +55°C
Operating Humidity: 5%–95% RH
Power Consumption: Idling ≤20 W; Full load 190 W

PERFORMANCE
Management Type: Yes
MTBF: 467,125.73 hours
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 29.76 Mpps
Packet Buffer Size: 4.1 Mbit
Jumbo Frame: 10K Byte
MAC Table Size: 8K
VLAN Number: 4K
VLAN Interface: 10
Dynamic ARP: 512
Communication Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad

FEATURES
PoE Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
PoE Power: Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W
PoE Power Management: Yes
PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)
Long Distance PoE Transmission: Yes
Spanning Tree Protocol: STP, RSTP
VLAN Function: Yes
Link Aggregation: Static and LACP
IEEE 802.3x Flow Control: Full-duplex
Multicast: IGMP Snooping
DHCP Function: DHCP Client, DHCP Server, DHCP Snooping
Security: IEEE 802.1x, ACL
Equipment Management: Web (HTTP/HTTPS), SNMP V1/V2C/V3

GENERAL
Static Protection: Air discharge 8 kV; Contact discharge 6 kV
Lightning Protection: Common mode 4 kV; Differential mode 2 kV
Net Weight: 3.405 kg
Gross Weight: 4.51 kg
Product Dimensions: 440 √ó 300 √ó 44 mm
Packaging Dimensions: 525 √ó 410 √ó 110 mm
Certifications: CE, FCC
