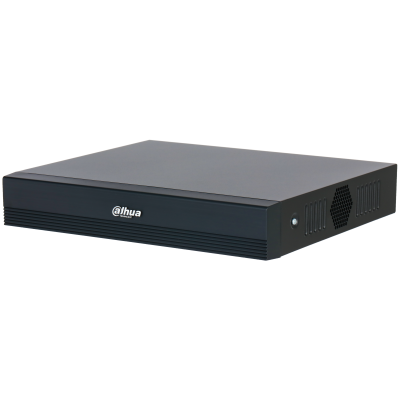

Dahua 16CH Penta-brid XVR1B16-I/T (1080N/720P, 1U, 1HDD, WizSense)

System

• Processor: Industrial-grade

• OS: Embedded Linux

• Interface: Web, Local GUI

• Dolynk Cloud Compatible: DMSS 2.0.30+, Dolynk Care 2.50.20+

SMD & AI Features

• SMD Plus (by Recorder): 16 channels, human & vehicle filtering to reduce false alarms

• SMD by Camera: 18 channels

• Irregular Black Block Masking: 1 channel by recorder

• AI Coding: 16-channel, saves storage & bandwidth while maintaining video detail

Video & Camera Input

• Analog Input: 16 BNC ports, supports HDCVI, AHD, TVI, CVBS auto-detect

• IP Camera Input: Up to 18 channels (2 by default + 16 analog converted), max 6 MP per channel

• Incoming Bandwidth: 64 Mbps

• Encoding Capacity:

  • Main stream: 1080N/720p 1‚Äì25/30 fps (1st channel), others 1‚Äì15 fps

  • Sub stream: CIF 1‚Äì7 fps

• Dual Stream: Supported

• Video Bit Rate: 32 kbps‚Äì4096 kbps

Audio

• Input: 1-channel RCA + 16-channel coaxial audio

• Output: 1-channel RCA

• Two-way Talk: 16-channel coaxial + local/network user support

• Audio Compression: G.711a, G.711u, PCM

Display & Playback

• Video Output: 1 HDMI, 1 VGA

  • HDMI: 1920 √ó 1080, 1280 √ó 1024, 1280 √ó 720

  • VGA: same resolutions

• Multi-screen Display: 1/4/8/9/16; up to 25 with IP extension

• Playback: Instant, general, event, tag, smart playback

• Backup: USB or network

Alarm & Detection

• General Alarm: Motion detection, HDCVI alarm, camera external alarm, network, PIR

• Anomaly Alarm: Disk errors, network issues, video loss/tampering, camera offline

• Intelligent Alarm: SMD Plus (human/vehicle)

• Alarm Linkage: Record, snapshot, IPC external output, buzzer, audio, preset, email

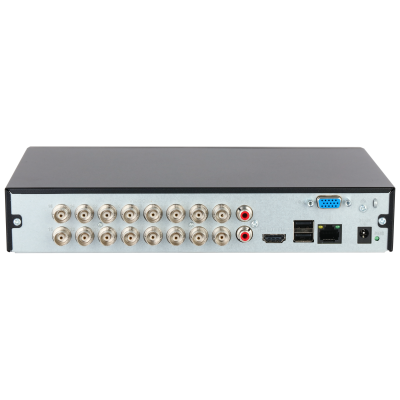

Ports & Storage

• Disk Interface: 1 SATA, up to 16 TB

• USB: 2 (rear, 2.0)

• Network: 1 RJ-45 (10/100 Mbps)

Compression & Protocols

• Video Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264

• Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, Alarm Server, P2P

• Third-party Camera Support: Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF

General

• Power Supply: 12 VDC, 2 A

• Power Consumption: <10 W (without HDD)

• Operating Temperature: ‚Äì10 ¬∞C to +45 ¬∞C

• Storage Temperature: ‚Äì20 ¬∞C to +60 ¬∞C

• Operating Humidity: 10‚Äì90% non-condensing

• Installation: Desktop

• Dimensions: 260 √ó 231.6 √ó 47.6 mm (W √ó D √ó H)

• Weight: 0.96 kg net / 1.54 kg gross

Certifications

• CE-LVD: IEC 62368-1:2014

• CE-EMC: EN IEC 61000 series, EN 55032/35/24, EN 50130-4

‚úÖ Key Highlights:

• 16 channels analog + 18 IP channels

• AI human & vehicle detection with SMD Plus

• Supports multiple video formats (CVI, TVI, AHD, CVBS, IP)

• Smart H.265+ compression saves storage and bandwidth

• Dolynk cloud & mobile access (iOS/Android)
