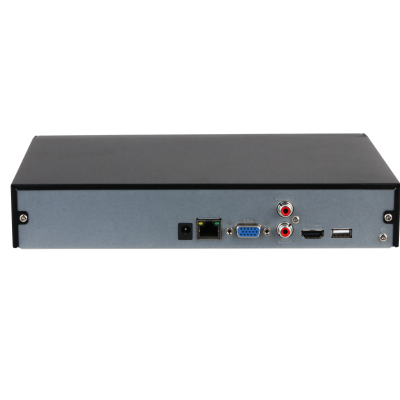

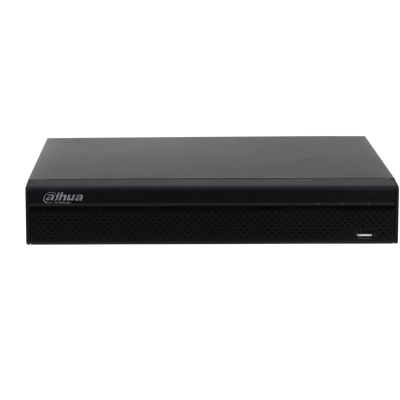

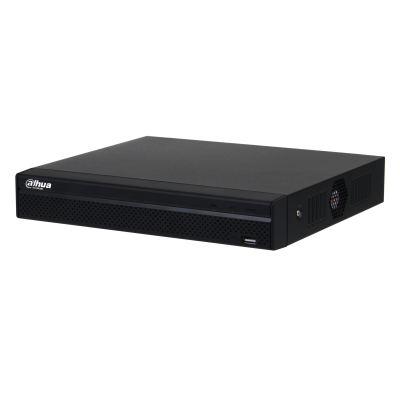

Dahua NVR4116HS-4KS3 16-channel 1HDD (No PoE)

Video & AI Features

• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

• Max Decoding Capability: 8 √ó 1080p@30 fps or 2 √ó 8 MP@30 fps

• Incoming/Recording/Outgoing Bandwidth: 160/160/80 Mbps (AI off), 80/80/60 Mbps (AI on)

• Supported Camera Resolution: Up to 12 MP

• AI by Recorder: 4-channel SMD Plus

• AI by Camera: Face detection & recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map

• EPTZ Support: Yes, with one-click arming/disarming

Face & Perimeter Analytics

• Face Detection (Camera): 6 channels

• Face Recognition (Camera): 6 channels

• Perimeter Protection (Camera): 6 channels

• SMD Plus: Recorder: 4 channels; Camera: 6 channels

Recording & Playback

• Access Channels: 16

• Record Mode: General, motion detection, intelligent, alarm

• Playback: Multi-channel up to 16; instant, general, event, tag, smart playback

• Backup: USB device or network

Storage

• HDD Interface: 1 SATA port, up to 20 TB (environment dependent)

Network & Ports

• Network Port: 1 √ó RJ-45 (10/100/1000 Mbps)

• Audio I/O: 1 √ó RCA input, 1 √ó RCA output

• Alarm I/O: Optional (2 in / 1 out)

• Video Output: 1 √ó HDMI (up to 3840 √ó 2160), 1 √ó VGA

• USB Ports: 1 √ó front USB 2.0, 1 √ó rear USB 2.0

Physical & Power

• Dimensions: 260 √ó 232.5 √ó 47.6 mm

• Weight: 0.81 kg (net), 1.38 kg (gross)

• Power Supply: 12 VDC, 2 A

• Power Consumption: <10 W (without HDD)

• Operating Temp: ‚Äì10 ¬∞C to +55 ¬∞C

• Humidity: 10%‚Äì93% RH, non-condensing

Installation & Compliance

• Installation: Rack or desktop

• Certifications: CE-EMC, CE-LVD

Key Notes:

• Smaller and lighter than the 16-channel 2HDD NVRs.

• Lower bandwidth (160 Mbps vs 256 Mbps) limits high-resolution streaming.

• Supports fewer AI channels for face detection/recognition and perimeter protection.

• Single HDD, suitable for smaller storage needs.

• No PoE support (requires external power for cameras).
