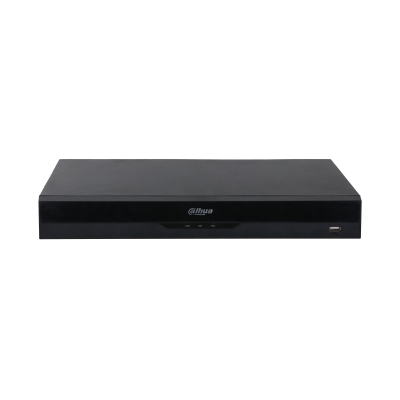

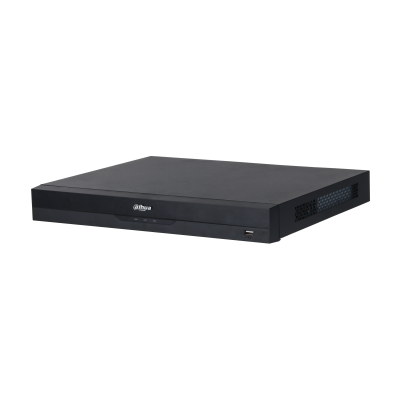

Dahua 16-Channel NVR with 16 PoE ports (NVR5216-16P-EI):

OVERVIEW

• Model: NVR5216-16P-EI

• Channels: 16 IP cameras

• PoE: 16 ports, 10/100 Mbps, IEEE 802.3 af/at (ports 1‚Äì8 support ePoE)

• HDD Support: 2 √ó SATA (up to 20 TB each)

• RAID: Supported (via disk group)

• Installation: Rack or desktop

• Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

• AI Features: Face detection & recognition, perimeter protection, SMD Plus, video metadata, ANPR, people counting, heat map

VIDEO & DECODING

• Max decoding: 32 √ó 1080p@30 fps or 16 √ó 4MP@30 fps

• Max bandwidth: 384 Mbps incoming/recording/outgoing

• Supported resolutions: Up to 32 MP

• Multi-screen display: main up to 16 channels; sub up to 16

• Video output: 1 HDMI, 1 VGA

• HDMI resolutions: up to 3840 √ó 2160 (4K)

• AI-enabled decoding: reduces max FPS/resolution per channel

AI CAPABILITIES

• Face Detection & Recognition:

  • Recorder: 2 channels FD, 12 images/s each

  • Camera: 16 channels FD & FR

  • Database: 20 databases, 20,000 images total (2.5 GB)

• Perimeter Protection:

  • Recorder: 4 channels, 10 IVS rules per channel

  • Camera: All channels (16 targets/s)

• SMD Plus: 8 channels (recorder), all channels for camera (32 targets/s)

• Video Metadata: human, motor vehicles, non-motor vehicles (8 channels)

• ANPR: all channels, 8 targets/s, 20,000 plate numbers

NETWORK & STORAGE

• Network Port: 1 √ó 1 Gbps RJ-45

• PoE output: 130 W total, max 25.5 W per port

• Protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, iSCSI

• Mobile access: iOS, Android

• Browser support: Chrome, IE, Safari, Edge, Firefox

• RAID: 0/1/5/6/10 via disk group

• Disk Group: Supported

• Backup: USB device or network

AUDIO & ALARMS

• Audio Input: 1-channel RCA

• Audio Output: 1-channel RCA

• Alarm Input: 4 channels

• Alarm Output: 2 channels

• Alarm types: motion detection, local alarm, camera external alarm, network alarm, scene changing, PIR, thermal

• Anomaly alarm: camera offline, storage error, disk full, IP/MAC conflict, fan abnormal, cybersecurity exception

• Intelligent alarm: face detection, perimeter, video metadata, SMD Plus, stereo analysis, people counting, ANPR, vehicle density, heat map

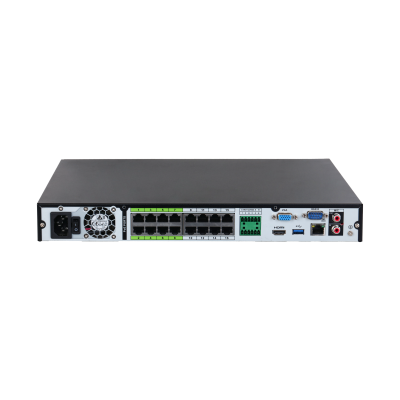

INTERFACES & PORTS

• USB: 2 ports (1 front USB 2.0, 1 rear USB 3.0)

• RS-232: 1

• RS-485: 1 (half-duplex)

• HDMI/VGA: 1 each

POWER & ENVIRONMENT

• Input: 100‚Äì240 VAC, 47‚Äì63 Hz

• NVR power consumption: ‚â§10 W (without HDD)

• Operating temp: ‚Äì10 ¬∞C to +55 ¬∞C

• Storage temp: ‚Äì20 ¬∞C to +60 ¬∞C

• Humidity: 10‚Äì93% RH

• PoE output: 130 W total, 25.5 W max per port

PHYSICAL

• Dimensions: 375 √ó 329 √ó 53 mm (W √ó D √ó H)

• Net weight: 2.66 kg

• Gross weight: 3.82 kg

CERTIFICATIONS

• FCC, CE-EMC, CE-LVD

Key Notes

• Integrated 16 PoE ports make this ideal for small/medium setups without separate PoE switches.

• 2 HDDs vs 4 HDDs on the larger 32-channel NVR (NVR5432-EI).

• Supports all Dahua AI features, but only 16 channels, suitable for smaller installations.
