Dahua 16-Channel Penta-Brid DVR (DH-XVR5116HS-I3)

Overview

• Model: DH-XVR5116HS-I3

• Type: 16-Channel Penta-brid DVR (HDCVI/AHD/TVI/CVBS/IP)

• AI Features: Human & vehicle detection, SMD Plus, face detection & recognition, perimeter protection

• HDD: 1 SATA port, up to 16 TB

• Form Factor: Desktop

AI & Smart Features

• QuickPick 2.0: 2 analog channels for efficient target retrieval

• SMD Plus: 16 analog / 24 IP channels, filters humans & vehicles

• Perimeter Protection: 4 analog channels with tripwire & intrusion detection

• Face Recognition: 2 analog channels, supports comparison, up to 10,000 images in 10 databases

• Face Detection: 2 channels, 6 attributes

• AI Coding: 16 channels to save bandwidth & storage

• Note: IP extension disables AI features

Video & Encoding

• Analog Input: 16 BNC ports, auto-detect HDCVI/AHD/TVI/CVBS

• IP Input: Up to 24 channels (8 default, plus 16 via analog-to-IP conversion)

• Bandwidth: 128 Mbps in/out

• Encoding: H.265+, H.265, H.264+, H.264, AI Coding

• Dual-stream supported

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Multi-screen Display: 1/4/8/9/16 (changes in AI mode or IP extension)

Audio

• 16-channel analog BNC audio input

• 1 RCA audio input/output

• Two-way talk shares audio with first channel

• Audio compression: G.711a/u, PCM

Network & Compatibility

• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration

• Mobile access: iOS / Android

• Third-party cameras: Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF

Recording & Playback

• Modes: General, alarm, motion, intelligent, POS

• Playback: 1/4/9/16 channels (adjusted in AI mode)

• Backup: USB device / network

• Smart playback: instant, event, tag-based

Alarm

• General: Motion, HDCVI, external, network, PIR

• Anomaly: Disk error, low space, video loss, tampering, offline camera

• Intelligent: Face detection/recognition, SMD Plus, perimeter protection

• Linkage: Record, snapshot, external output, audio, buzzer, log, preset, email

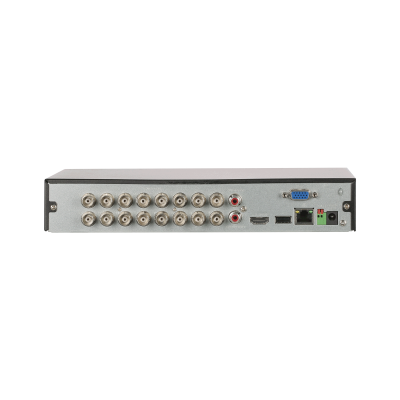

Ports

• RS-485: 1

• USB: 1 front USB 2.0, 1 rear USB 3.0

• HDMI: 1

• VGA: 1

• Ethernet: 1 √ó 10/100/1000 Mbps RJ-45

• Audio: 1 RCA in / 1 RCA out

Power & Environment

• Power: 12 VDC, 2 A

• Power consumption: <12 W (without HDD)

• Operating Temp: ‚Äì10 ¬∞C to +55 ¬∞C

• Storage Temp: ‚Äì20 ¬∞C to +60 ¬∞C

• Humidity: 10‚Äì90% RH, non-condensing

Physical

• Dimensions: 260 √ó 237.8 √ó 47.6 mm (W√óD√óH)

• Weight: 1.17 kg net, 1.57 kg gross

• Installation: Desktop

• Certifications: CE, FCC
