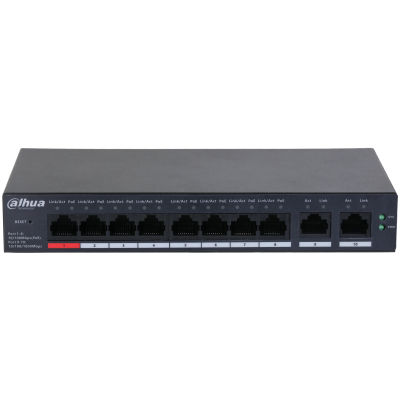

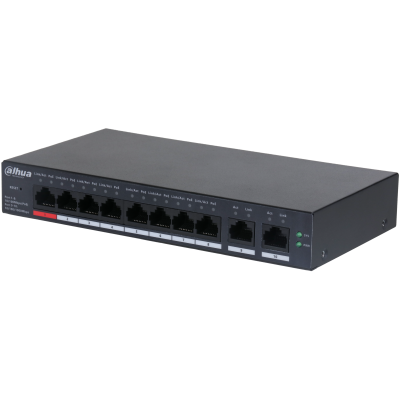

DAHUA 10-Port Cloud Managed Desktop Switch with 8-Port PoE (CS4010-8ET-110):

DESCRIPTION

• 8 PoE ports (100 Mbps) + 2 uplink Gigabit Ethernet ports

• Total PoE budget: 110 W (Port 1 ‚⧠90 W, Ports 2-8 ‚⧠30 W)

• Cloud manageable via web/app

• Wide operating temperature: ‚Äì10¬∞C to +55¬∞C

• Full metal, dust-proof casing

• Supports VLAN, long-distance PoE

HARDWARE

• Ethernet Ports: 8 √ó 10/100 Mbps PoE, 2 √ó 10/100/1000 Mbps uplink

• PoE Protocol: IEEE802.3af/at, Hi-PoE, IEEE802.3bt

• PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)

• Power Supply: External 54 VDC, 2.22 A

• Reset Button: 1

• Installation: Desktop or wall mount

• Net Weight: 0.5 kg

• Gross Weight: 1.25 kg

• Product Dimensions: 190 √ó 106 √ó 30 mm

• Casing Material: Sheet metal

• Certifications: CE

PERFORMANCE

• Layer: 2

• Switching Capacity: 5.6 Gbps

• Packet Forwarding Rate: 4.17 Mpps

• Packet Buffer Size: 4 Mbit

• Jumbo Frame: 9216 Byte

• MAC Table Size: 8K

• VLAN Number: 32

• MTBF: 150 years

FEATURES

• PoE Management: Power on/off, overload protection

• Long Distance PoE Transmission supported

• VLAN: Port-based VLAN

• Flow Control: IEEE 802.3x

• DHCP: Client mode

• Equipment Management: Web and App

• Static and Lightning Protection: 8 kV / 6 kV (Air/Contact), 4 kV / 2 kV (Common/Differential)
