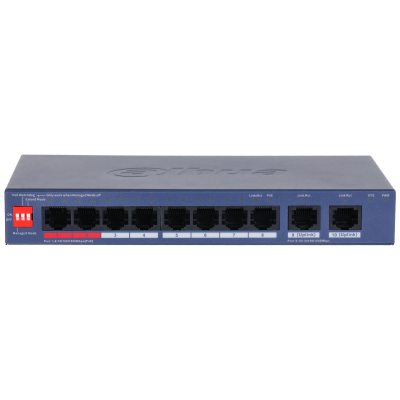

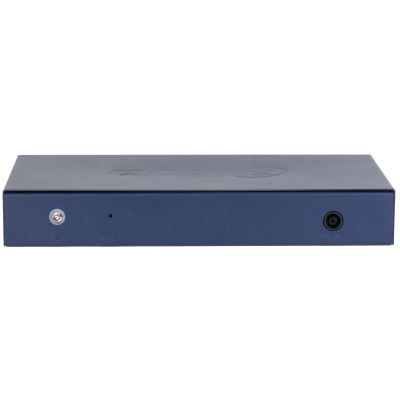

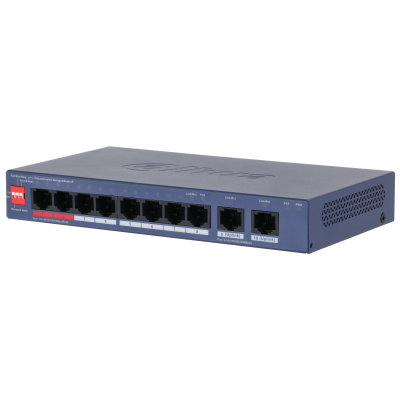

DAHUA 10-PORT CLOUD MANAGED DESKTOP GIGABIT SWITCH WITH 8-PORT POE (CS4010-8GT-110)

DESCRIPTION
Switch with 8 PoE Gigabit ports + 2 Gigabit Ethernet ports, 110W total PoE, cloud manageable, desktop or wall mountable.

• 8 √ó RJ-45 Gigabit PoE ports, 2 √ó RJ-45 Gigabit ports

• 110 W total PoE budget; 802.3af/at on all PoE ports, additional 802.3bt on red ports

• DIP switch for fast ON/OFF of Cloud-Managed mode, PoE Watchdog, and 250 m long-distance PoE

• Operating temperature: ‚Äì10¬∞C to +55¬∞C

• Supports VLAN, STP, RSTP, and link aggregation

• Web-managed and cloud management via DoLynk Care app for real-time monitoring

• Easy auto-detection and network setup

HARDWARE

• PoE: Yes

• PoE Power: Ports 3-8 ‚⧠30 W, Ports 1-2 ‚⧠90 W, total ‚⧠110 W

• PoE Protocol: IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt

• PoE Management: On/off, overload protection

• PoE Pin Assignment: 1,2 (V+), 3,6 (V-)

• Long Distance PoE: Yes, up to 250 m at 10 Mbps

• DIP Switch: Managed Mode (default), PoE Watchdog, Extend Mode

• Reset Button: 1

• Power Supply: External adapter 54 V, 2.22 A

• Operating Humidity: 10%‚Äì90% RH

• Storage Temperature: ‚Äì40¬∞C to +75¬∞C

• Storage Humidity: 5%‚Äì95% RH

• Net Weight: 0.36 kg

• Gross Weight: 1.14 kg

• Product Dimensions: 184.6 √ó 103.3 √ó 27 mm

• Casing Material: Sheet metal

• Installation: Desktop or wall mount

• Certifications: CE

PERFORMANCE

• Layer: 2

• Switching Capacity: 20 Gbps

• Packet Forwarding Rate: 14.88 Mpps

• Packet Buffer Size: 4 Mbit

• Jumbo Frame: 15,360 Byte

• MAC Table Size: 8K

• VLAN Number: 32

• Communication Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3ad

FEATURES

• Ethernet Loop Protection: STP, RSTP

• VLAN: IEEE 802.1Q

• Link Aggregation: Static

• Port Features: Flow control, unknown unicast suppression, multicast & broadcast storm control, MAC+Port binding, loop prevention

• Mirror: Local port mirroring, N:1

• Reliability: LLDP

• DHCP Function: DHCP Client

• Security: Port isolation

• Equipment Management: Web, Cloud, Logs, Fault Alarm

TRANSMISSION PERFORMANCE
