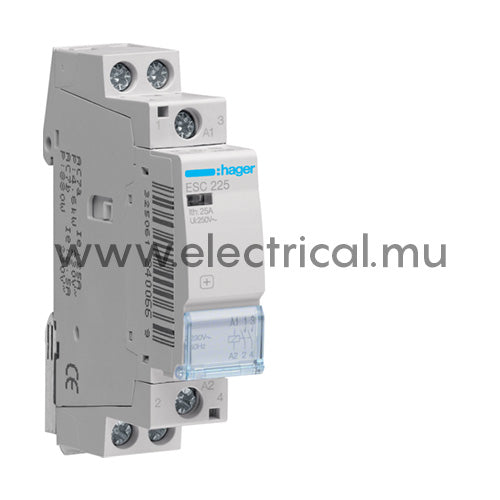

Description
| Main electrical features | |
|---|---|
| Rated operational voltage Ue | 230 V |
| Frequency | 50 Hz |
| Rated current | 25 A |
| Voltage | |
| Rated insulation voltage | 250 V |
| Rated impulse withstand voltage | 4 kV |
| Dimensions | |
| Depth of installed product | 60 mm |
| Height of installed product | 83 mm |
| Width of installed product | 17.85 mm |
| Power | |
| Total power loss under IN | 5.9 W |
| Power dissipation per coil | 2.9 W |
| Endurance | |
| Electric endurance in number of cycles | 30000 |
| Number of mechanical operations | 100000 |
| Capacity | |
| Number of modules | 1 |
| Fluorescent bulbs control | |
| Max. power with fluorescent parallel lamps | 810 VA |
| Incandescent bulbs control | |
| Max. power with incandescent lamps | 1900 W |
| Installation, mounting | |
| Tightening torque | 1,2Nm |
| Connection | |
| Connection cross-sect. flexible conductor | 1 ; 6mm² |
| Connection cross-sect. rigid cable | 1 ; 10mm² |
| Type of connection | with screw |
| Type of contacts | 2NO |
| Equipment | |
| Can be accessorized | Yes |
| Standards | |
| European directive WEEE | concerned |
| Safety | |
| Protection index IP | 2 |
| Use conditions | |
| Storage temperature | -40/80 °C |
| Temperature | |
| Operating temperature | -10/50 °C |
