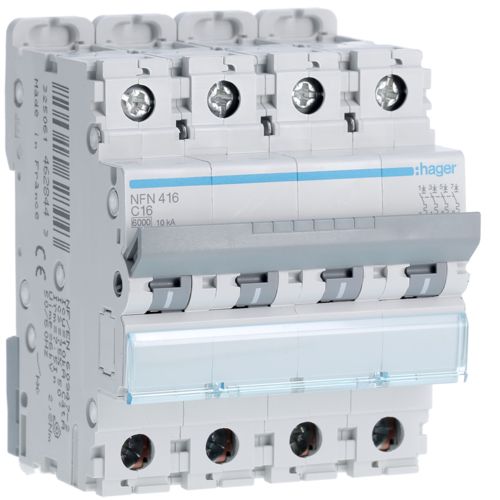

Circuit Breaker / Disjoncteur (C Curve) 4P
Rated 3.5/5 based on 11 customer reviews

Circuit Breaker / Disjoncteur (C Curve) 4P

  • Availability: In Stock
Rs 1,046.00
Hurry! only 0 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
Add to compare Add to Wishlist
Architecture
Neutral position without neutral
Number of poles 4 P
Type of pole 4 P
Fixing mode Din-Rail
Curve C
Main electrical features
Rated operational voltage Ue 400 V
Type of supply voltage AC
Voltage
Rated insulation voltage 500 V
Rated impulse withstand voltage 6000 V
Electric current
Rated service breaking capacity Ics AC according IEC 60898-1 7.5 kA
Rated service breaking capacity Ics under 400V AC according IEC 60947-2 7.5 kA
Electric current / temperature
Rating current 30°C according to IEC 60947-2 11.36 A
Dimensions
Depth of installed product 70 mm
Height of installed product 83 mm
Width of installed product 70 mm
Power
Total power loss under IN 8.29 W
Endurance
Electric endurance in number of cycles 4000
Number of mechanical operations 20000
Capacity
Number of modules 4
Installation, mounting
Tightening torque 2,8Nm
Equipment
Can be accessorized Yes
Standards
Standard text EN 60898-1 ; IEC 60947-2
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -25/80 °C
Temperature
Operating temperature -25/70 °C
Architecture
Neutral position without neutral
Number of poles 4 P
Type of pole 4 P
Fixing mode Din-Rail
Curve C
Main electrical features
Rated operational voltage Ue 400 V
Type of supply voltage AC
Voltage
Rated insulation voltage 500 V
Rated impulse withstand voltage 6000 V
Electric current
Rated service breaking capacity Ics AC according IEC 60898-1 7.5 kA
Rated service breaking capacity Ics under 400V AC according IEC 60947-2 7.5 kA
Electric current / temperature
Rating current 30°C according to IEC 60947-2 11.36 A
Dimensions
Depth of installed product 70 mm
Height of installed product 83 mm
Width of installed product 70 mm
Power
Total power loss under IN 8.29 W
Endurance
Electric endurance in number of cycles 4000
Number of mechanical operations 20000
Capacity
Number of modules 4
Installation, mounting
Tightening torque 2,8Nm
Equipment
Can be accessorized Yes
Standards
Standard text EN 60898-1 ; IEC 60947-2
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -25/80 °C
Temperature
Operating temperature -25/70 °C
