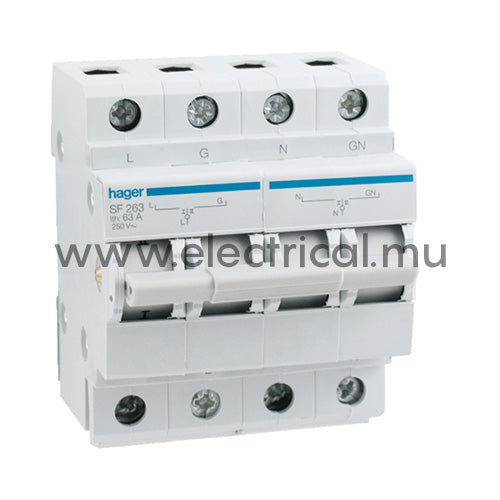

Change Over Switch 2P | 63A
Rated 3.5/5 based on 11 customer reviews
Sold Out

Change Over Switch 2P | 63A

  • Availability: Sold Out
Rs 2,714.00 Rs 2,467.00
Hurry! only 0 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
Architecture
Number of poles 2 P
Main electrical features
Rated operational voltage Ue 230 V
Frequency 50;60 Hz
Rated current 63 A
Voltage
Rated insulation voltage 500 V
Rated impulse withstand voltage 4000 V
Dimensions
Depth of installed product 72 mm
Height of installed product 90 mm
Width of installed product 71.5 mm
Power
Total power loss under IN 3.6 W
Endurance
Number of mechanical operations 100000
Capacity
Number of modules 4
Installation, mounting
Tightening torque 2,9Nm
Connection
Connection cross-sect. flexible conductor 16mm²
Connection cross-sect. rigid cable 25mm²
Type of connection with screw
Type of contacts changeover with zero position
Equipment
Can be accessorized No
Standards
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -40/80 °C
Temperature
Operating temperature -20/50 °C
Technical characteristics
Architecture
Number of poles 2 P
Main electrical features
Rated operational voltage Ue 230 V
Frequency 50;60 Hz
Rated current 63 A
Voltage
Rated insulation voltage 500 V
Rated impulse withstand voltage 4000 V
Dimensions
Depth of installed product 72 mm
Height of installed product 90 mm
Width of installed product 71.5 mm
Power
Total power loss under IN 3.6 W
Endurance
Number of mechanical operations 100000
Capacity
Number of modules 4
Installation, mounting
Tightening torque 2,9Nm
Connection
Connection cross-sect. flexible conductor 16mm²
Connection cross-sect. rigid cable 25mm²
Type of connection with screw
Type of contacts changeover with zero position
Equipment
Can be accessorized No
Standards
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -40/80 °C
Temperature
Operating temperature -20/50 °C
