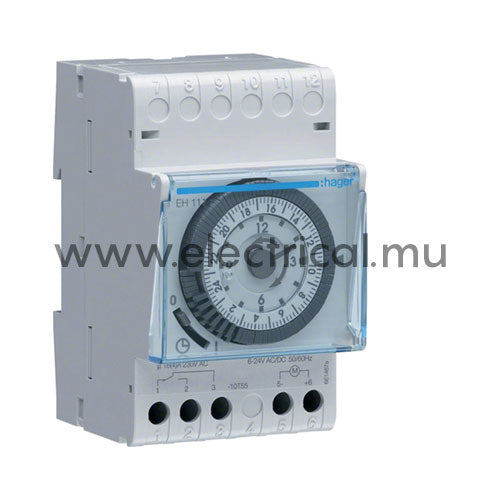

Analog Timer | Time switch daily cycle with reserve
Rated 3.5/5 based on 11 customer reviews

Analog Timer | Time switch daily cycle with reserve

  • Availability: In Stock
Rs 2,243.00
Hurry! only -3 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
Add to compare Add to Wishlist
Architecture
Fixing mode Din-Rail
Functions
Power reserve ≈ 200 h
Configuration
Switch mode change-over contact, usable as NC or NO
Main electrical features
Rated operational voltage Ue 230 V
Frequency 50 Hz
Voltage
Supply voltage 230V AC
Dimensions
Depth of installed product 60 mm
Height of installed product 90 mm
Width of installed product 54 mm
Dimensions (W x H x D) 54/90/60 mm
Power
Power consumed 0.5 VA
Power consumption (operation) 0.5 VA
Total power loss under IN 1 W
Power dissipation per coil 0.5 W
Capacity
Breaking capacity 16A 250V AC1
Capacity
Number of modules 3
Battery
Charging time of the power reserve in hours 120
Incandescent bulbs control
Max. power with incandescent lamps 900 W
Installation, mounting
Mounting type surface-mounted
Connection
Connection cross-sect. flexible conductor 1 ; 4mm²
Connection cross-sect. rigid cable 1 ; 4mm²
Type of connection with screw
Number of contacts 1
Type of contacts 1 changeover
Type of connection with screw terminals
Settings
Summer / Winter time change manual
Shortest switching time 15 mn
Type of programming analog
Programming cycle 24H
Setting Setting via day dial
Equipment
Number of channels 1
Supply failure reserve 200 h
Use
Cycle daily
Safety
Protection index IP IP20
Use conditions
Operating temperature -10/45 °C
Working accuracy 1
Storage temperature -20/70 °C
Temperature
Operating temperature -10/45 °C

Architecture
Fixing mode Din-Rail
Functions
Power reserve ≈ 200 h
Configuration
Switch mode change-over contact, usable as NC or NO
Main electrical features
Rated operational voltage Ue 230 V
Frequency 50 Hz
Voltage
Supply voltage 230V AC
Dimensions
Depth of installed product 60 mm
Height of installed product 90 mm
Width of installed product 54 mm
Dimensions (W x H x D) 54/90/60 mm
Power
Power consumed 0.5 VA
Power consumption (operation) 0.5 VA
Total power loss under IN 1 W
Power dissipation per coil 0.5 W
Capacity
Breaking capacity 16A 250V AC1
Capacity
Number of modules 3
Battery
Charging time of the power reserve in hours 120
Incandescent bulbs control
Max. power with incandescent lamps 900 W
Installation, mounting
Mounting type surface-mounted
Connection
Connection cross-sect. flexible conductor 1 ; 4mm²
Connection cross-sect. rigid cable 1 ; 4mm²
Type of connection with screw
Number of contacts 1
Type of contacts 1 changeover
Type of connection with screw terminals
Settings
Summer / Winter time change manual
Shortest switching time 15 mn
Type of programming analog
Programming cycle 24H
Setting Setting via day dial
Equipment
Number of channels 1
Supply failure reserve 200 h
Use
Cycle daily
Safety
Protection index IP IP20
Use conditions
Operating temperature -10/45 °C
Working accuracy 1
Storage temperature -20/70 °C
Temperature
Operating temperature -10/45 °C
