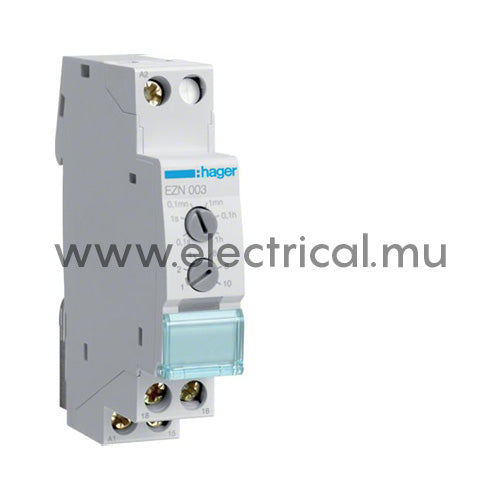

Hager Adjustable Time-ON Timer

Fixing mode: DIN rail type O (symmetrical)

Functions
Function: On delay, Off delay, single shot leading edge;single shot trailing edge, pulse shaping, flashing symmetrically, contact open;closed

Configuration
Switch mode: change-over contact, usable as NC or NO

Main electrical features
Frequency: 50;60 Hz

Voltage
Supply voltage: 12, 24, 48 or 230V

Dimensions
Depth of installed product: 58 mm
Height of installed product: 85 mm
Length: 64 mm
Width of installed product: 17.5 mm
Dimensions (W x H x D): 17.5/85/58 mm

Power
Power consumed: 15 VA
Power consumption (operation): 15 VA
Total power loss under IN: 2 W
Power dissipation per coil: 0.5 W

Capacity
Breaking capacity: 8A 230V AC1

Capacity
Number of modules: 1

Incandescent bulbs control
Max. power with incandescent lamps: 450 W

Installation, mounting
Mounting type: din-Rail

Connection
Connection cross-sect. flexible conductor: 1 ; 6mm²
Connection cross-sect. rigid cable: 1,5 ; 10mm²
Type of connection: with screw
Number of contacts: 1
Type of contacts: 1 changeover
Type of connection: with screw terminals

Settings
Time delayed range: 0.1 s... 10 h
Setting: with 2 potentiometers for setting of delay time

Safety
Protection index IP: IP40

Use conditions
Operating temperature: -10/50 °C
Storage temperature: -40/70 °C

Temperature
Operating temperature: -20/50 °C
