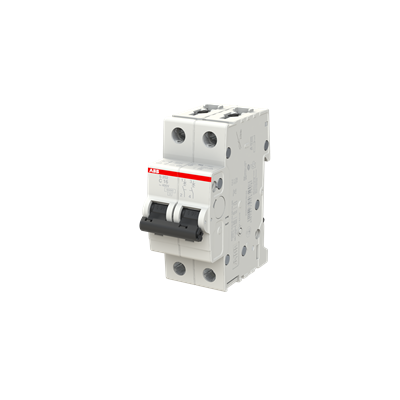

ABB - miniature circuit breakers (MCB) 2Pole (2P) -10A

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Technical

• Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

• Tripping Characteristic: C

• Rated Operational Voltage: acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC

• Operational Voltage: Maximum (Incl. Tolerance) 125 V DC, Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC

• Rated Insulation Voltage (U_i): acc. to IEC/EN 60664-1 440 V

• Rated Impulse Withstand Voltage (U_imp): 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

• Dielectric Test Voltage: 50/60 Hz, 1 min: 2 kV

• Input Voltage Type: AC/DC

1 Year Warranty

See Technical Specification
