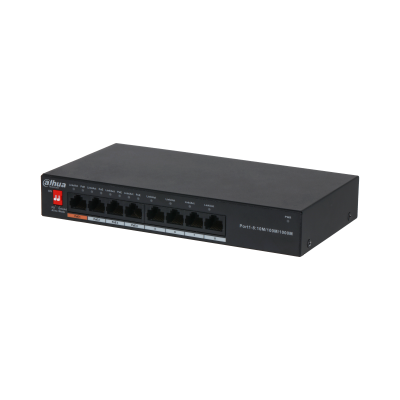

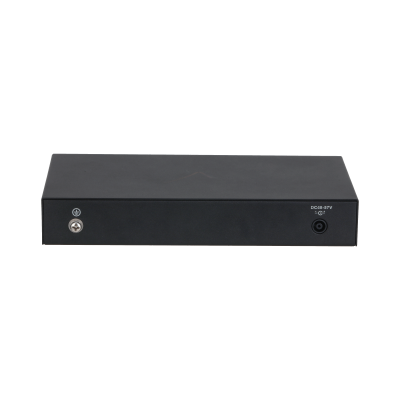

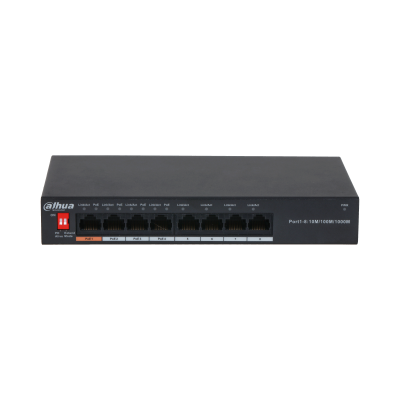

Dahua 8-Port Unmanaged Desktop Switch with 4-Port PoE (PFS3008-8GT-60, V2.0):

DESCRIPTION

• 4 PoE Gigabit ports + 4 standard Gigabit Ethernet ports

• Total PoE budget: 60 W

• All-gigabit ports with Hi-PoE support

• Supports long-distance PoE (up to 250 m / 820 ft)

• Intelligent PoE with PoE watchdog

• Wide operating temperature: ‚Äì10¬∞C to +55¬∞C

• Unmanaged, plug-and-play

HARDWARE

• Data ports:

  • Ports 1-4: RJ-45 10/100/1000 Mbps (PoE)

  • Ports 5-8: RJ-45 10/100/1000 Mbps

• PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE

• PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)

• Power Supply: 48‚Äì57 V DC

• Power Consumption: Idling 3 W, Full load 60 W

• Net Weight: 0.49 kg

• Product Dimensions: 190 √ó 100 √ó 30 mm

• Casing: Desktop metal enclosure

PERFORMANCE

• Switching Capacity: 20 Gbps

• Packet Forwarding Rate: 11.9 Mpps

• Packet Buffer: 1.5 Mbit

• MAC Table: 8K

• Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

PROTECTION

• Air Discharge: 8 kV, Contact Discharge: 6 kV

• Thunder-proof: Common Mode 2 kV, Differential Mode 0.5 kV

PoE TRANSMISSION CAPACITY (CAT5E/CAT6, 53V)

• IEEE802.3bt 90W: up to 100 m = 71.3 W, 150 m = 62 W, 200 m = 51 W, 250 m = 40 W

• Hi-PoE 60W: 100 m = 53 W, 150 m = 50 W, 200 m = 47 W, 250 m = 37 W

• IEEE802.3at 30W: 100‚Äì250 m = 25.5 W
