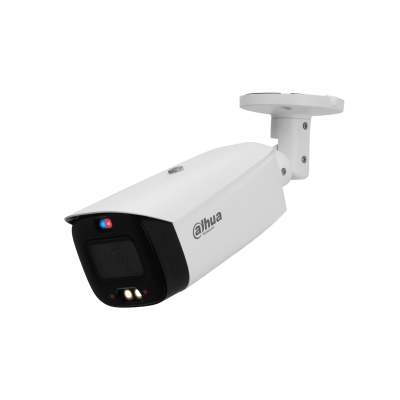

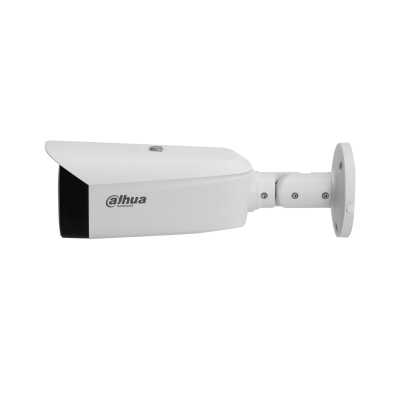

Dahua 5MP TIOC 2.0 WizSense Bullet Camera DH-IPC-HFW3549T1-AS-PV-S5:

Image & Lens

• Sensor: 1/2.7" CMOS, 5MP

• Max Resolution: 2592 √ó 1944 @ 20 fps

• Lens: Fixed-focal 2.8 mm, 3.6 mm, or 6 mm, F1.0

• Field of View:

  • 2.8 mm: H 98¬∞, V 71¬∞, D 129¬∞

  • 3.6 mm: H 77¬∞, V 56¬∞, D 101¬∞

  • 6 mm: H 53¬∞, V 40¬∞, D 66¬∞

• Close Focus Distance: 2.8 mm: 1.2 m | 3.6 mm: 2.1 m | 6 mm: 4.5 m

• Pan/Tilt/Rotation: Pan 0‚Äì360¬∞, Tilt 0‚Äì90¬∞, Rotation 0‚Äì360¬∞

Illumination

• IR & Warm Light LEDs: Built-in, up to 30 m for both

• Min Illumination: 0.003 lux @ F1.0

• Smart Illumination: Supported

• WDR / BLC / HLC / 3D NR: Supported (120 dB WDR)

• Full Color Night Vision: Yes

Intelligence & AI

• Perimeter Protection: Tripwire, intrusion (vehicle & human classification)

• SMD 4.0: Smart human/vehicle detection

• Face Detection: Full-frame face detection supported

• Additional AI: Stay detection, loitering detection

• AI SSA & One-Tap Arming/Disarming: Supported

• Active Deterrence: Red/blue lights + sound alarm (11 built-in sounds, custom voices)

Video & Compression

• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG (sub-stream)

• Smart Codec: Smart H.265+ / Smart H.264+

• Streams: 3

• Video Resolutions: 5MP (2592√ó1944), 4MP, 3MP, 1080p, 1.3MP, 720p, D1, VGA, CIF

• Privacy Masking: 4 areas

• Rotation & Mirror: Supported (0¬∞/90¬∞/180¬∞/270¬∞ at 2592√ó1944 and lower)

Audio & Alarm

• Audio: Built-in dual MIC, 1-channel speaker, 2-way talk

• Alarm Inputs / Outputs: 1 in, 1 out; external triggers & AI events

Network & Storage

• Network: RJ-45 (10/100 Base-T), IPv4/IPv6, ONVIF S/G/T, CGI, Milestone, Genetec

• Users: 20 max, total bandwidth 80 Mbps

• Storage: Micro SD up to 512 GB, NAS, FTP/SFTP

• Management Software & Mobile Client: Smart PSS, DSS, DMSS; iOS & Android

Power

• Supply: 12 VDC / PoE (802.3af)

• Power Consumption: Basic 2‚Äì2.6 W, Max 7.5‚Äì8.8 W (H.265 + warm light + IVS + active deterrence)

Environment & Protection

• Operating Temp: ‚Äì40 ¬∞C to +60 ¬∞C

• Humidity: <95% RH

• Ingress Protection: IP67

• Casing: Metal + plastic

Dimensions & Weight

• Size: 288.4 √ó 94.4 √ó 84.7 mm

• Net Weight: 1.0 kg

• Gross Weight: 1.23 kg

‚úÖ Key Highlights:

• Full-color night vision + active deterrence with red/blue lights & siren

• AI-focused: SMD 4.0, human/vehicle detection, face detection, loitering detection

• Compact bullet camera with high-resolution 5MP imaging

• Suitable for residential, commercial, or small-scale outdoor security applications
