• Pentax Ultra18 Multistage Pump Tri 4HP (Quiet Pump)
  • Pentax Ultra18 Multistage Pump Tri 4HP (Quiet Pump)
1 2

Pentax Ultra18 Multistage Pump Tri 4HP (Quiet Pump)

Pentax Ultra18 Multistage Pump Tri 4HP (Quiet Pump)

Rs 29,250.00
Rs 29,250.00
Sale Sold out
Tax included.

Type : Silent Pump

SKU : Ultra18-400

Collections : Pentax Water Pumps, Water Pumps,

Availability : In Stock

Type

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

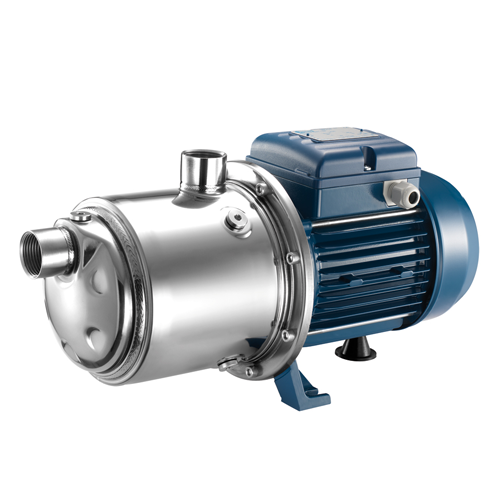

Pentax Ultra18 Multistage water Pump Triphase 4HP (U18-400/4)

Pentax Ultra 9 U18-400/4 TRI- Stainless Steel Multistage Pump

The Pentax Ultra S range are stainless steel multistage pumps well suited to house and farm water supply. They have a robust fully stainless steel wet end and are very quiet in operation. The Ultra S Series are available in a wide range of models to match your application. They can also cover a wide range of applications such as pumping of clean non-loaded fluids, irrigation, drinking and glycol water, water treatment, heating and air conditioning and washing systems.

CONSTRUCTION FEATURES
Pump body stainless steel AISI 304
Motor bracket aluminium
Impeller noryl®
Mechanical seal ceramic-graphite ≤ 6 impeller, graphite-silicon carbide ≥ 7 impeller
Motor shaft stainless steel AISI 304
Liquid temperature -5 ÷ +35 °C
Operating pressure max 8,5 bar
Motor
2 poles induction motor 3~ 230/400V-50Hz, 1~ 230V-50Hz with thermal protection up to 1,85 kW
Insulation class F
Protection degree IP44



    MODEL 1~ MODEL 3~ HP kW FLOW RATE
    (l/min)    		 H
    (m)
    U3-50/2 U3-50/2T 0.5 0.37 10 ÷ 80 18.8 ÷ 4.9
    U3-70/3 U3-70/3T 0.7 0.51 10 ÷ 80 27.9 ÷ 6.7
    U3-90/4 U3-90/4T 0.9 0.66 10 ÷ 80 38.3 ÷ 10.4
    U3-100/5 U3-100/5T 1 0.75 10 ÷ 80 48.9 ÷ 14
    U3-120/6 U3-120/6T 1.2 0.9 10 ÷ 80 58.7 ÷ 18.3
    U3-150/7 U3-150/7T 1.5 1.1 10 ÷ 80 71.3 ÷ 24.9
    U5-70/2 U5-70/2T 0.7 0.51 30 ÷ 140 19.7 ÷ 1.8
    U5-80/3 U5-80/3T 0.8 0.6 30 ÷ 140 30.3 ÷ 3.9
    U5-120/4 U5-120/4T 1.2 0.9 30 ÷ 140 41.3 ÷ 6.4
    U5-150/5 U5-150/5T 1.5 1.1 30 ÷ 140 53 ÷ 11.5
    U5-180/6 U5-180/6T 1.8 1.3 30 ÷ 140 64.4 ÷ 12
    U5-200/7 U5-200/7T 2 1.5 30 ÷ 140 73.6 ÷ 12.5
    U7-100/2 U7-100/2T 1 0.75 40 ÷ 170 23.4 ÷ 8.3
    U7-120/3 U7-120/3T 1.2 0.9 40 ÷ 170 34 ÷ 11
    U7-180/4 U7-180/4T 1.8 1.3 40 ÷ 170 47.4 ÷ 16.9
    U7-250/5 U7-250/5T 2.5 1.85 40 ÷ 170 60.6 ÷ 21.5
    U7-300/6 U7-300/6T 3 2.2 40 ÷ 170 71.5 ÷ 26.7
    U7-350/7T 3.5 2.57 40 ÷ 170 83.3 ÷ 32.2
    U9-100/2 U9-100/2T 1 0.75 60 ÷ 240 20.9 ÷ 6.5
    U9-150/3 U9-150/3T 1.5 1.1 60 ÷ 240 32.6 ÷ 10.8
    U9-200/4 U9-200/4T 2 1.5 60 ÷ 240 43.5 ÷ 13.3
    U9-250/5 U9-250/5T 2.5 1.85 60 ÷ 240 54.4 ÷ 16.3
    U18-180/2T 1.8 1.3 100 ÷ 420 21.4 ÷ 5.5
    U18-250/3T 2.5 1.85 100 ÷ 420 32.7 ÷ 8.7
    U18-400/4T 4 3 100 ÷ 420 44.6 ÷ 14.3



    ALL TECHNICAL SPECIFICATIONS ON:

    https://www.pentax-pumps.it/pentax/en/product/ultra/
