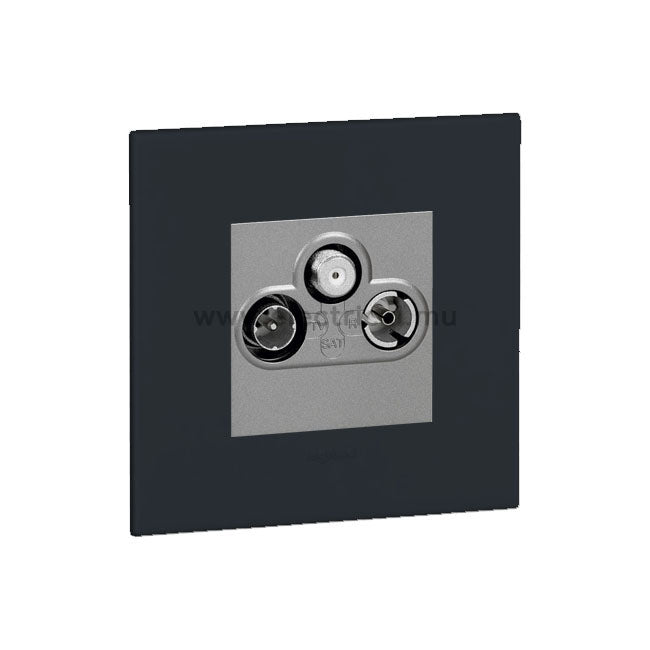

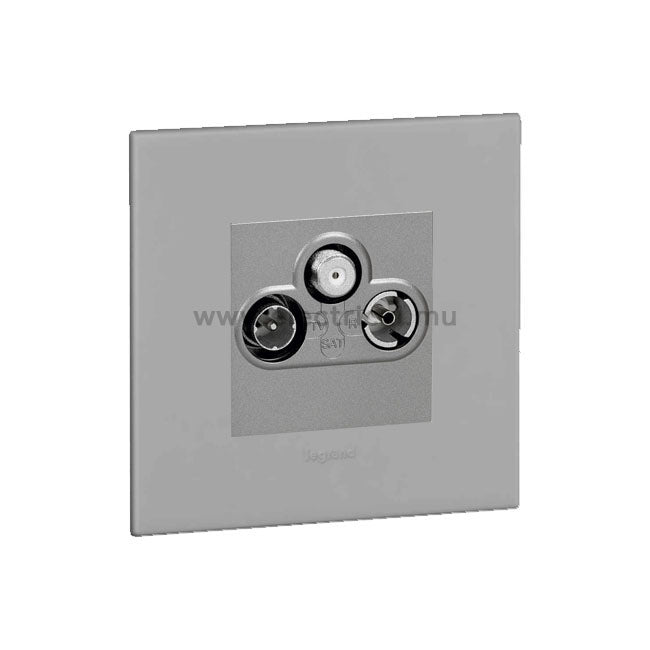

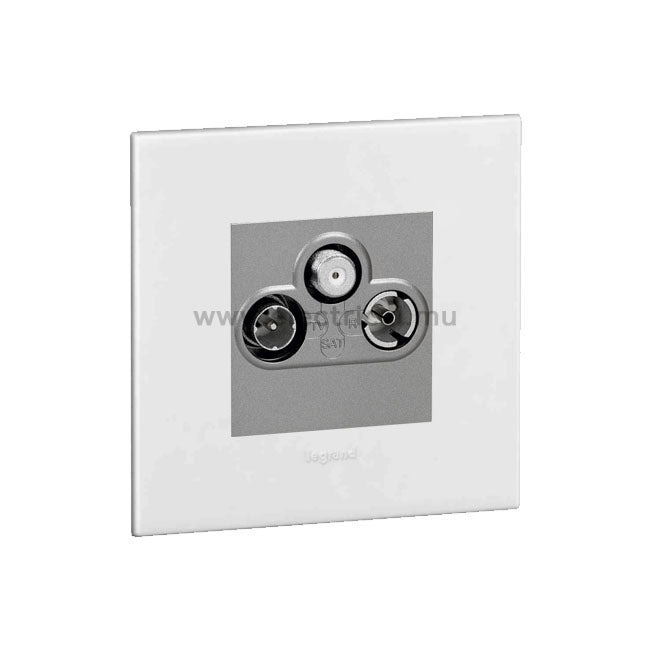

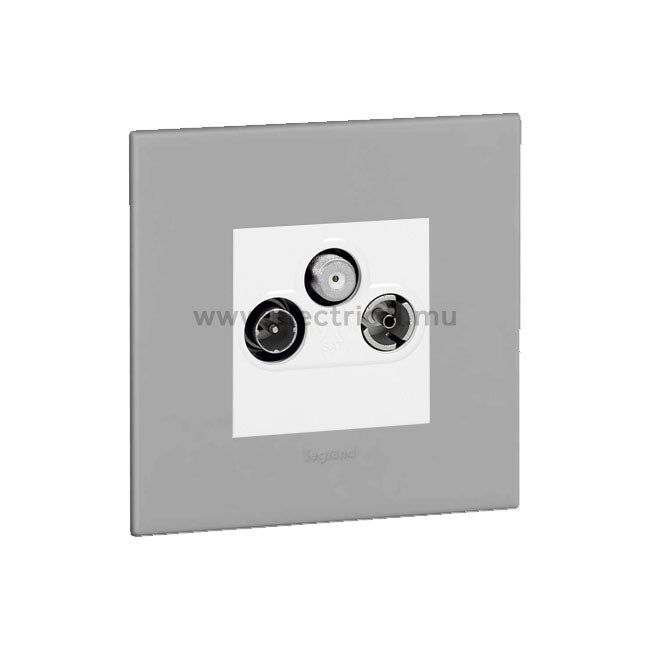

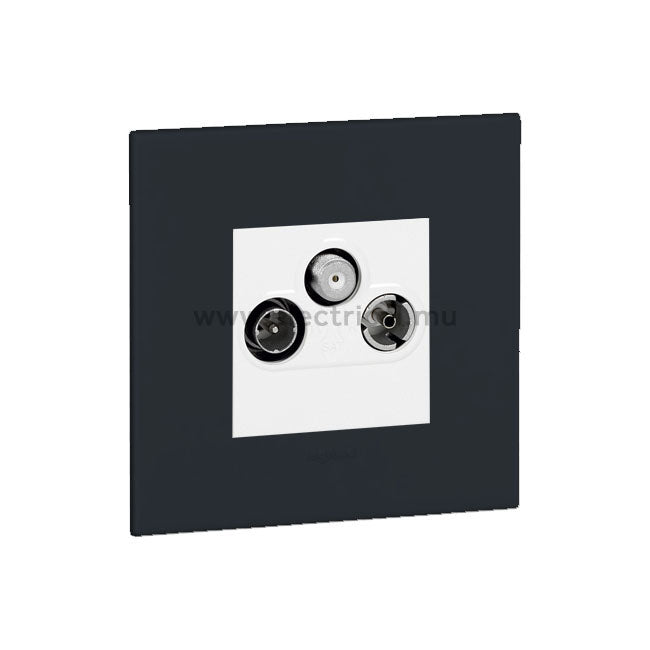

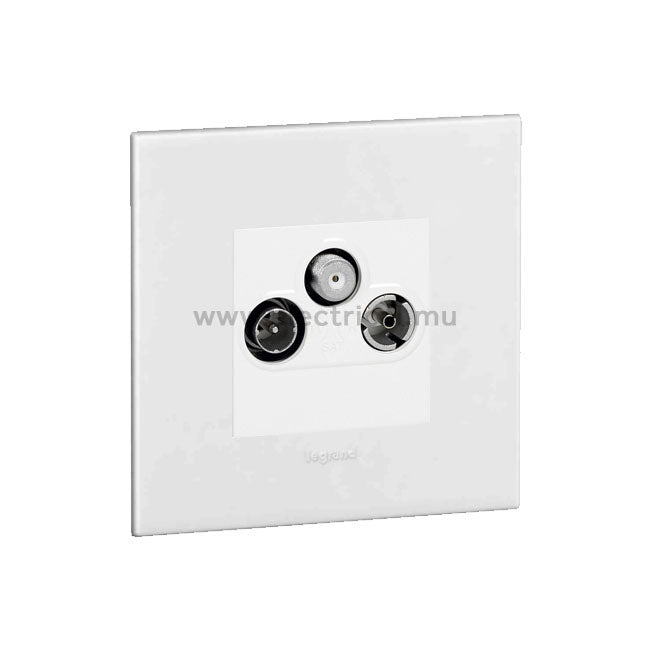

Legrand Arteor Socket TV-R-SAT Shielded (with support frame and plate)

Complete with sockets, support frame and cover plate.

includes Support frame

Warranty: 2 years

Legrand is the global specialist in electrical and digital infrastructures, offering high value added products and solutions for commercial, residential and industrial buildings.

Arteor™ televison sockets

• Mechanisms supplied with rocker plates, to be equipped with support frames and plates
• For Dvbt, Cablecast and satellite installation
• UHD TV quality compatible
• Classe A shielded star socket LTE ready (4G protected)
• Recommended coaxial cable: 17 VATCA
• Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch). Visual check of the connection
• Meets EN 50083-4 and EN 50083-2 European directive
• TV: male connector (Ø9.5 mm) - 5-68 /120-862 MHz
• R: female connector (Ø9.5 mm) - 87.5-108 MHz
• SAT: "F" type connector - 950-2400MHz

Multi TV star sockets

• 2 modules

TV-R-SAT sockets

• Low attenuation: 1.5 dB
• Magnesium
• Can be installed in receptacles for floor sockets

Arteor™ British standard plates

• 60.3 mm fixing centres
• White / Pearl Alu / Graphite
