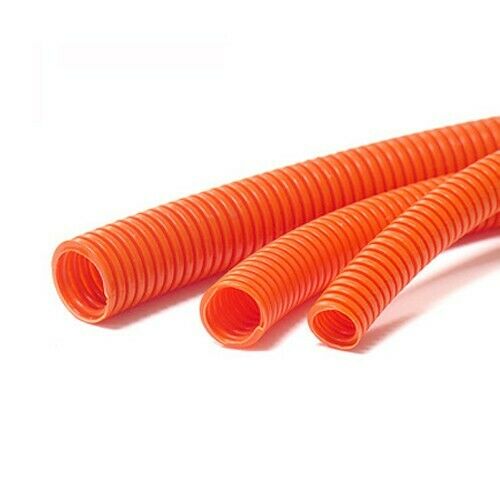

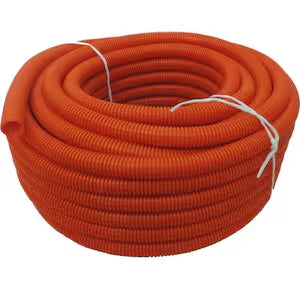

Field of application : Pliable conduit systems for cable management

Classification coding : Polyflex (Medium duty/Very heavy impact) 3522

Application area : Electrical installations in residential buildings exposed or embedded  (walls/cladding/tiles) and for protection of duct systems in public buildings, columns, cable tray networks etc.

Sizes : 16/20/25/32/40 mm
Material : PP (750 N/20 Joules/-5°C & 90°C)
Colour : Orange / Embedded in wall plaster/concrete
Profile type : Double skin, internal low friction colored layer for easy cable pulling Resistance : Non-flame propagating I UV resistant
Pre-installed polyamide line /100% recyclable /Insulating resistance at 500 VDC

Geometrical Characteristics
- Dimensions
- Nominal outside diameters
-Wall Thickness (plain conduit)
Mechanical Characteristics
- Resistance to Compression
- Resistance to Impact
According to temperature
- Lower temperature
- Upper temperature
Standard Requirements
As per BS EN 61386-22
Clause 8.2 Table 101 size only (BS EN 61386-22)
Annex B 8.1 BS EN 61386-1

Clause 10.2 (BS EN 61386-1) Medium duty (750N)
Clause 10.3 (BS EN 61386-1) Very Heavy

Clause 6.2.1 Table 1 BS EN 61386-1 (-5°C)
Clause 6.2.2 Table 2 BS EN 61386-1 (+90°C)
